Two industrial Kern Laser Systems cut and etch acrylic up to 1 in thick, plus wood and other non-metal sheet stock — a clean, flame-polished edge straight off the bed.
A CO₂ laser melts the edge as it cuts, so acrylic comes off the bed with a glass-clear, flame-polished finish and no separate edge-finishing step. That makes it the right call for fine-detail work — dimensional lettering, intricate award shapes, engraving — that a router bit cannot reach into.
Running two systems means a rush job does not have to wait behind a long production run on the other machine.
| Material | Thickness | Edge result |
|---|---|---|
| Cast acrylic | 0.06 – 1.00 in | Flame-polished, glass clear |
| Extruded acrylic | 0.06 – 0.50 in | Flame-polished, light haze on thick cuts |
| Baltic birch ply & MDF | up to 0.50 in | Light char line, sandable |
| Paper, mylar & gasket stock | up to 0.125 in | Clean cut, no melt |
Vector file confirmed for closed paths and cut-vs-etch line weights before it ever touches the bed.
A scrap-stock test cut checks power and speed settings against the exact sheet lot before the real material loads.
Sheets nest for yield and run unattended once dialed in, with spot checks against the file at set intervals.
Every piece gets a visual edge check before it moves to polishing, printing or kitting.

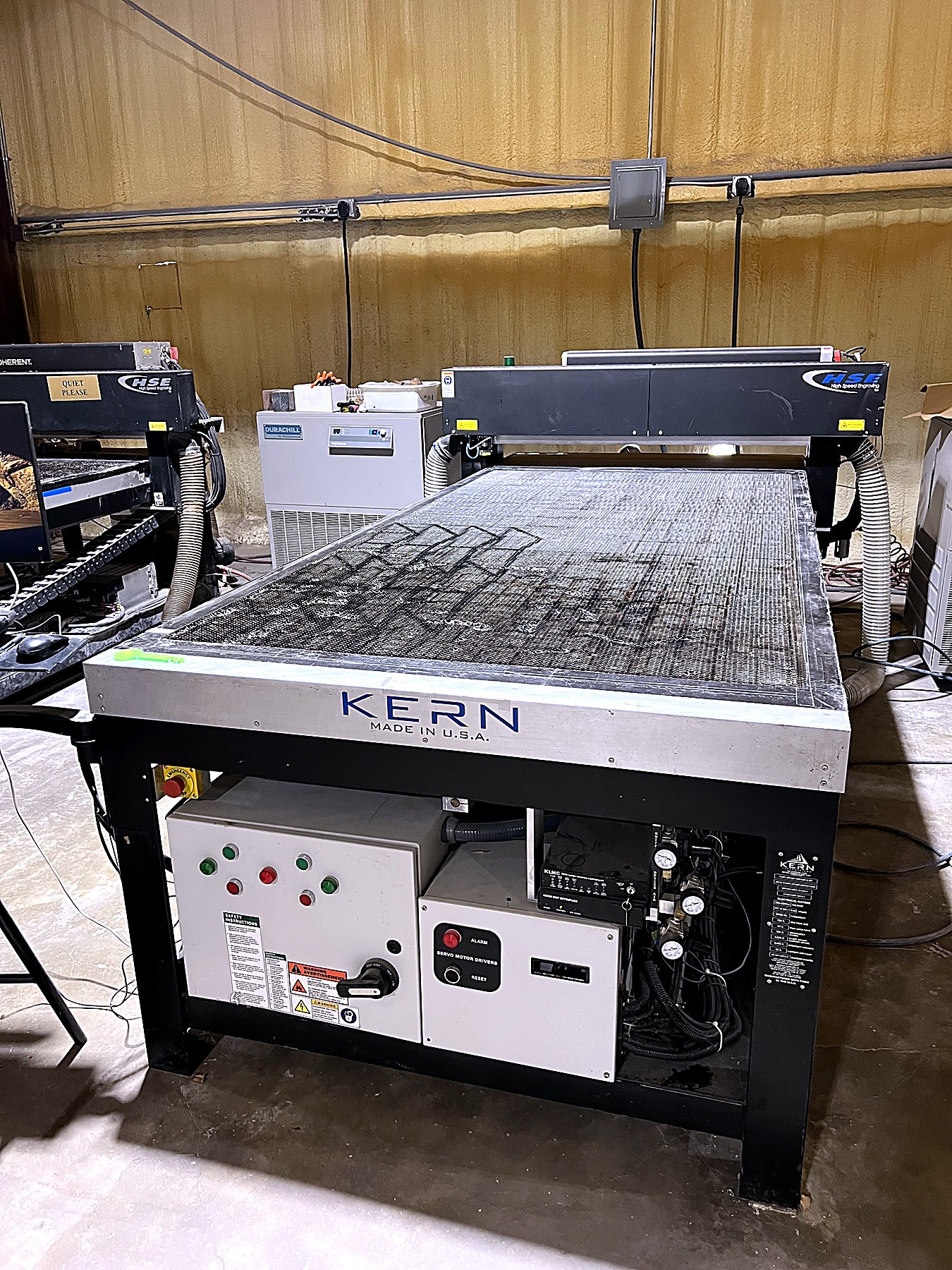

One of the two Kern systems on the floor

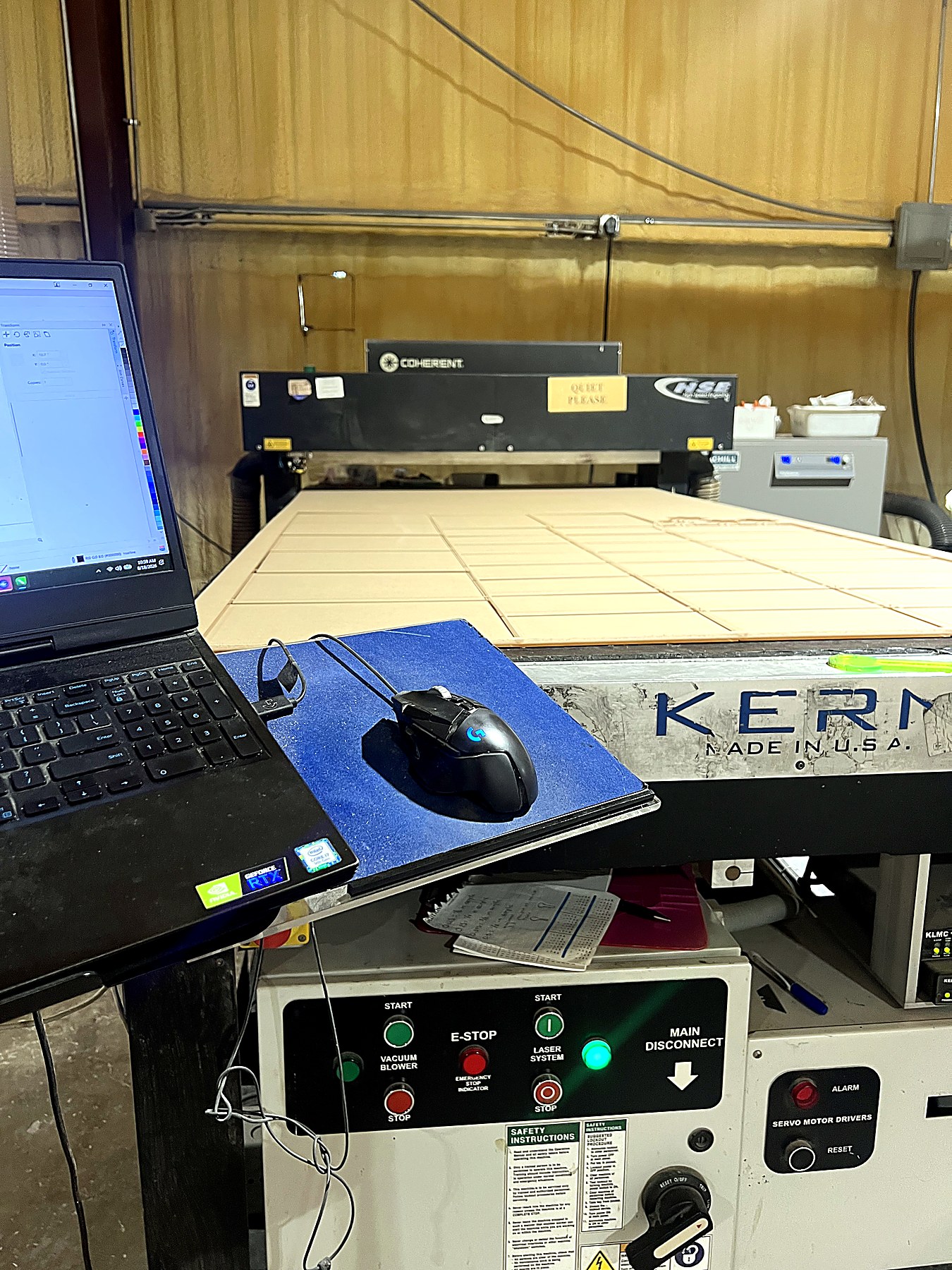

Cut file loaded at the machine before a run

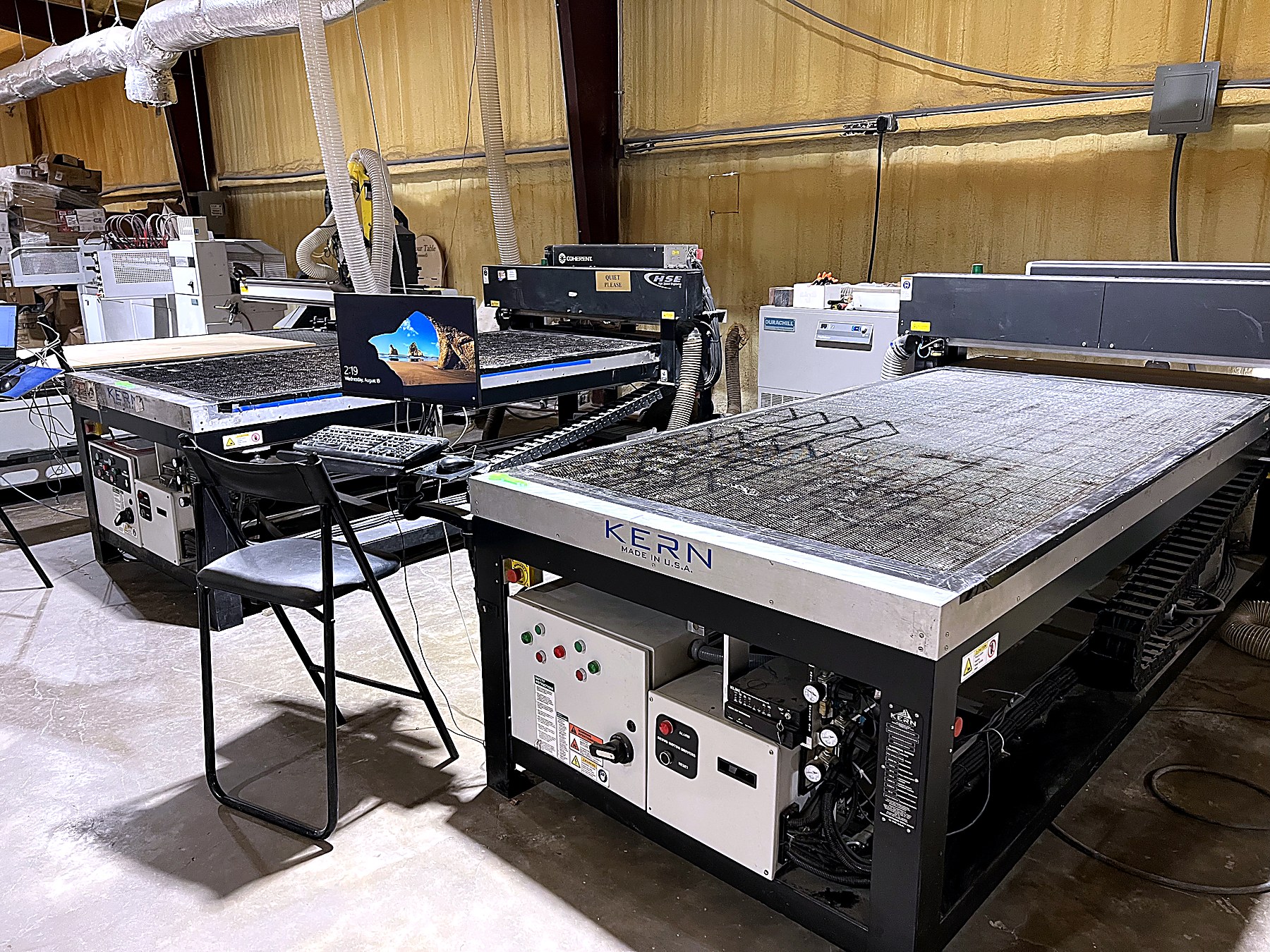

Both laser beds, so a rush job never waits on the other machine

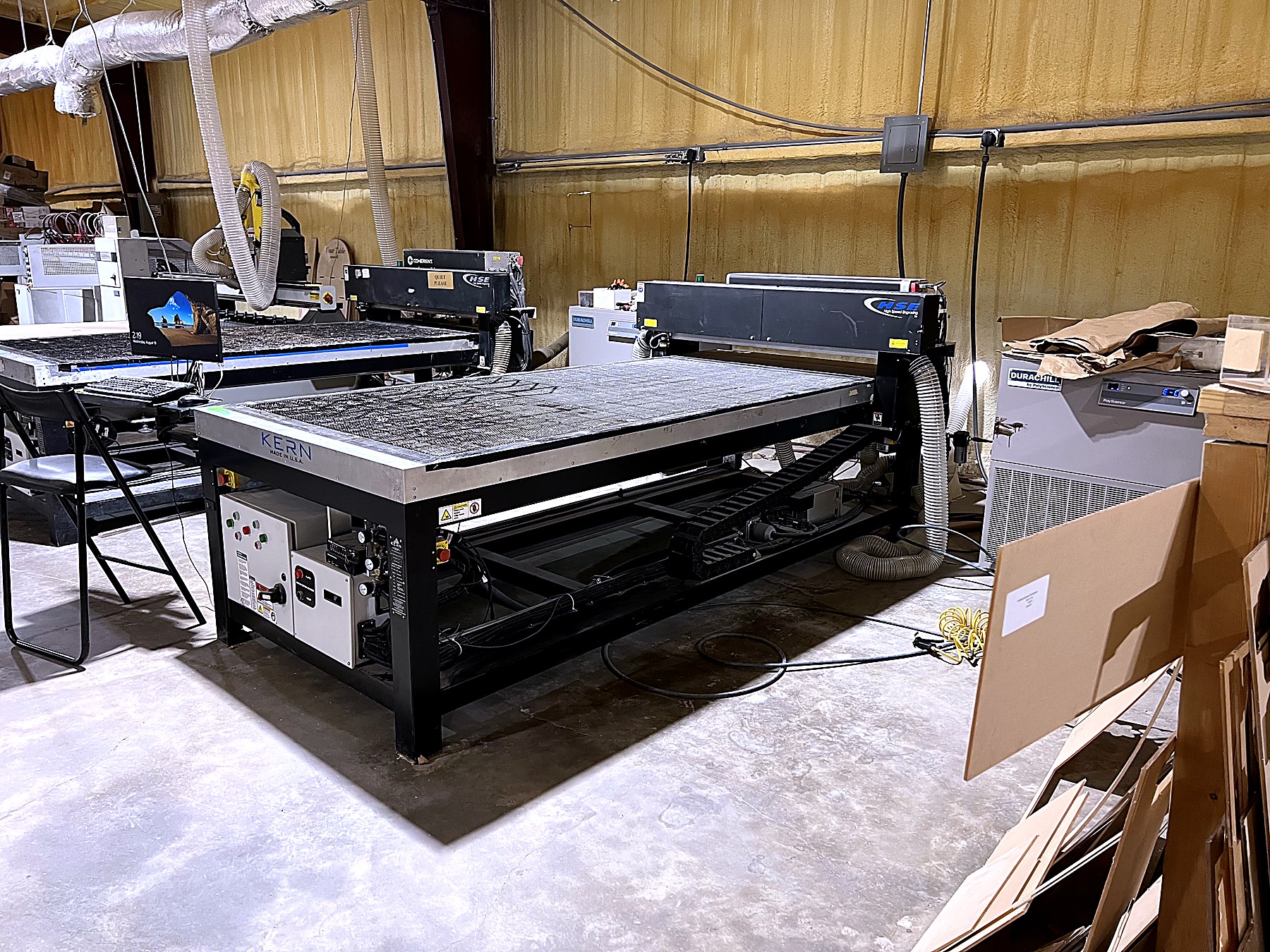

The laser bay, Grand Prairie
Yes — send engrave lines and cut lines on separate layers and we will sequence them so engraving happens before the part cuts free.
Usually not — the laser leaves a flame-polished edge on its own. Diamond polishing is for edges that were routed or need a mirror finish beyond what the laser leaves.
AI, EPS, DXF or PDF with cut and etch lines on separate layers or colors.
Send the vector file and material spec — pricing and lead time back by the next business day.
